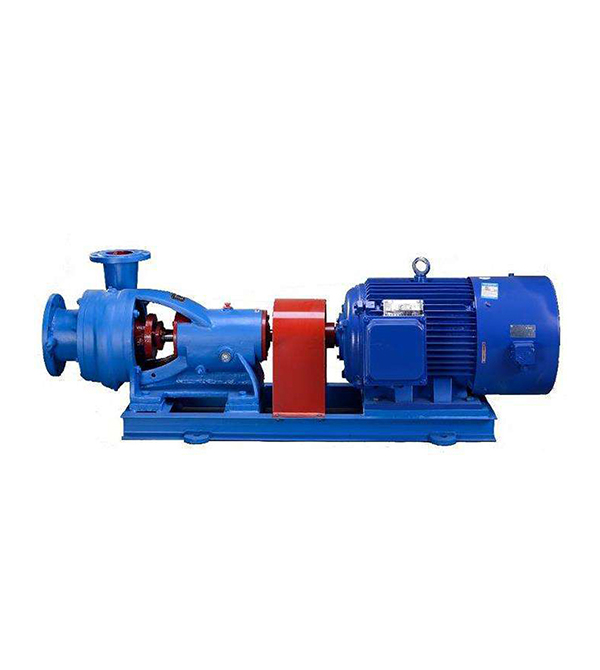

The N-type condensate pump is a single-stage or two-stage cantilever centrifugal pump. It is mainly used for transporting condensed water in small thermal power plants, and it can also be used to transport other medium similar to condensate water.
Performance range:
Flow rate: 8~110m³/h
Head: 50.5~170m
Temperature: ≤80°C
Model Meaning:
Example 1: 2.5N3X2
2.5-inlet diameter of the pump divided by 25
N-condensation pump
3-tenth of one-stage lift
2- impeller series
Example 2: 150N-130
150- suction inlet diameter (mm)
N-condensation pump
130-Pump Head (m)

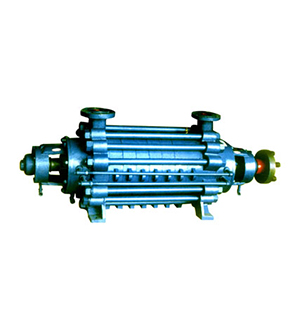

CHTA and CHTC high-pressure boiler feed pumps are double-casing and multi-stage horizontal high-pressure pumps, which were produced using the advanced technology of German KSB company. The CHTZ high-pressure boiler feed pump is designed and developed on the basis of CHTA. The inner casing is divided into horizontal and open type. Mainly used for 100MW to 1000MW thermal power generating units. The type of pump drive includes: 1 motor speed increase gearbox drive. 2 motor speed up type hydraulic coupling drive. 3 small turbine drive. The pump's steering is clockwise as viewed from the drive side.
Performance range:
Flow rate: 350~2400m³/h
Head: 1700~2800m
Medium temperature: 160°C-210°C;
Model Description:
40
Design number
CHTA/
Horizontal double shell multistage centrifugal pump
6
Pump stage

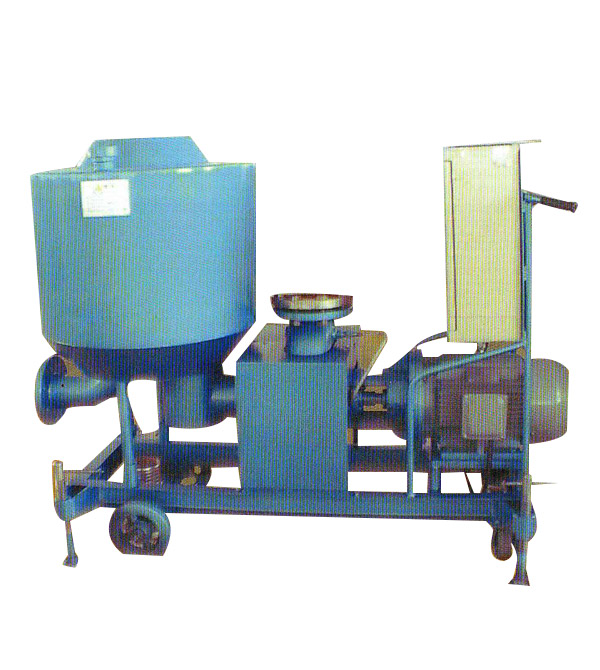

TP synchronous suction pump:
Overview:
The TP synchronous suction pump series is manufactured in strict accordance with the requirements of JB/T6535 "Technical Conditions for Centrifugal Sewage Pumps". Available in both horizontal and vertical installations.
use and performance
TP type synchronous exhaust pump is widely used in petroleum, steel, electric power, chemical, chemical fiber, mining, metallurgy, papermaking, environmental protection, cement, and other industries.
Performance range:
flow: up to 8000m3 / h
head: up to 108m
medium temperature ≤ 90 ° C
Model meaning: TPA (B) 100-50- 32 A
TPA (B) : synchronous suction pump A series (B series)
100: Suction diameter (mm)
50: Flow rate (m3/h)
32: Head (m)
A: Impeller cutting times
|
